Wednesday, June 17, 2009

Essbase my first cube

After finaly installing Essbase it's time for my first cube.

This one is based on the Oracle SH (Sales History) Demo schema.

Log in to your essbase studio:

image_thumb28

Step 1 set up a Data Source:

image_thumb1

Get the tables:

image4_thumb

Skip creating a mini schema:

image11_thumb

Goto the default minischema and check the joins:

image_thumb29

In the Metadaa Navigator create a "source" folder and drag all the fields you want to use to it:

image_thumb30

Next create a Hiearchies Folder:

Create Locations Hiearchy:

image_thumb31

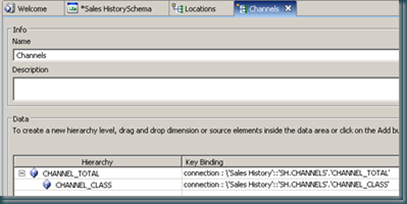

Create the Channels Hierarchy:

image_thumb32

Create the Products Hiearchy:

image_thumb33

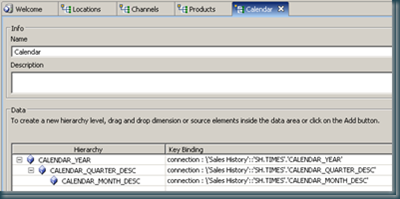

Create the Calendar Hierarchy:

image_thumb34

Create the Promotions Hierarchy:

image_thumb35

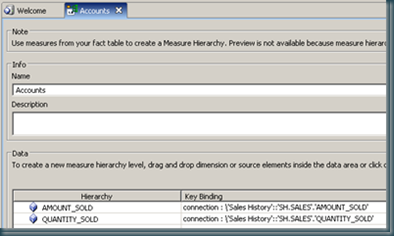

Create the Accounts (measure) Hierarchy:

image_thumb36

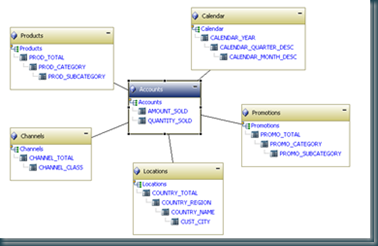

Next we create a Cube schema:

image_thumb37

Based on the cube schema we create an Essbase model:

image_thumb38

Set the model to ASO:

image_thumb2

Because Essbase doesn't like the same element description in different hiearchy path we have to add some prefix coding to some of the dimensions:

Promotions: {PROMO_SUBCATEGORY}

image_thumb39

Calendar: {CALENDAR_MONTH_DESC}

image_thumb40

In the info tab of the calendar hiearchy we have to set Time and Dense Dimension Storage

image_thumb41

Now open the Administration Services Console to add a new Essbase application and database:

image_thumb42

Create a new apllication "using aggregate storage"

image_thumb43

Create the database:

image_thumb

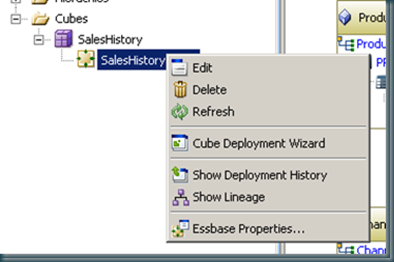

Go back to the studio and open the Cube deployment wizard:

image_thumb45

Select the Application and Database:

image_thumb46

Check Build outline and load data.

Check Delete and Restore database.

image_thumb47

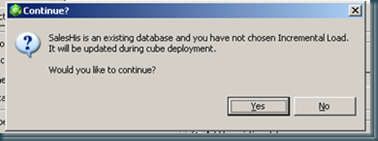

Press Yes

Wait a little bit:

image_thumb48

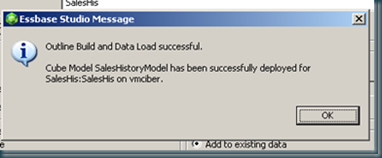

Succes..?

image_thumb49

Back to the administration services:

image_thumb50

On the database press preview data:

image_thumb3

Succes!

(a special thanks to Mark Rittman for pointing me in the right direction!)

Till Next Time

Saturday, June 6, 2009

Essbase install

Finally took the time to get my Essbase virtual working.

First get of all copy all the assemblies into the same directory in the install directory:


Start the installtool.cmd:



Select a language:



The error on my install is caused by the fact thast my VM doesn't have a static IP adress.


Select a install directory



Check if only the essbase components are selected.





Wait untill the instal is finished.


Start the EPm System Configurator:


Select a configuration database type:



Enter the crenditals for the confugration database.




Deploy the application







Deploy the essbase application:






Start the essbase server:


Start the essbase studio console:



Login admin / password


Let's get started!



Till Next Time
